Digivu+ manual

The Digivu+ is a card reader for heavy vehicles, it can download the drivercard data and tacho files. In this article we'll explain A. when its use is applicable and B. how to upload these files to your FleetGO account.

A. Use cases

DigiVuPlus has 2 main functions, namely the mobile (manual) ,
• readout from Tachograph Mass Memory
• read Driver card

These 2 functions are applicable in 4 situations when automated download can not foresee:

- When renting a vehicle (specific manual tachograph download of rented period)
• When phasing out the vehicle (if automatic tachograph download has not taken place completely), and FleetGO box if is blocked.
• In the case of 'Disabled driver' and this driver has driven for hours/days after his last journey, his card must be read out manually for traffic jams on these last journeys.
• Same in case of temporary (hired) driver

In short, both the mass memory of the Tachograph and the driver card can be read with this. The files can then be uploaded in FleetGO Webapp.

B. How to use the Digivu +/ Download Tacho Files

1. Make sure the vehicle is on.

2. Please insert the company card in entry 1, company name appears in the display of the Tachograph.

3. Insert the Digivu to your Tachograph, it has a 6 pins adapter.

4. When the download icon turns green, the download is completed. You can remove the Digivu.

If the download icon turns orange, it is still downloading. If the icon turns red, the download has failed.

Following icon shows if there is enough memory space for the download, it turns orange if memory is 75% full.

DriverCard download

With the Digivu+ you can easily download the driver-card data.

1. Insert the driver-card into the card reader of the Digivu. Downloading starts immediately.

2. As soon as the LED indicator blinks en turns off, the download is completed.

3. Eject driver-card.

Upload files in FleetGO

You received two USB devices with your Digivu +. One of them can be connected to the Digivu reader. The other one contains the Tachosys software. The software program to upload/download the files.

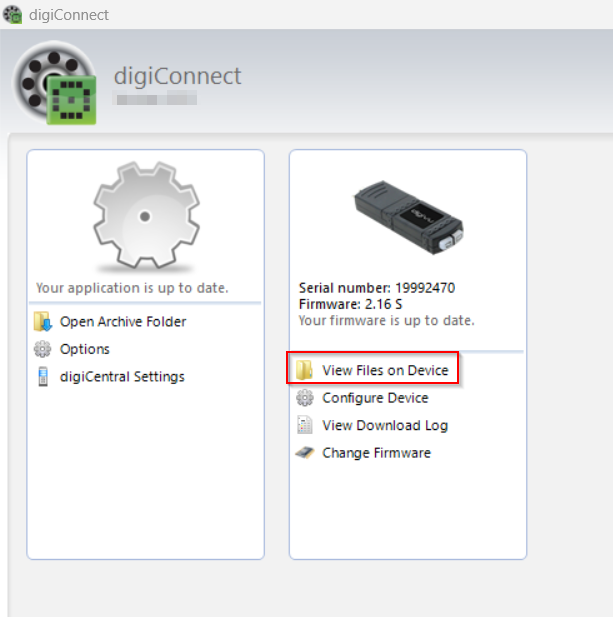

1. Connect the USB with the DigiConnect software to your PC and download the software program.

Note: Requires Windows.

2. After successfully downloading the software, connect the Digivu stick with your USB adapter and connect it to your PC.

3. Open FleetGO and Login.

4. Navigate to: Tachograph > Common > Files.

5. Click at: Upload.

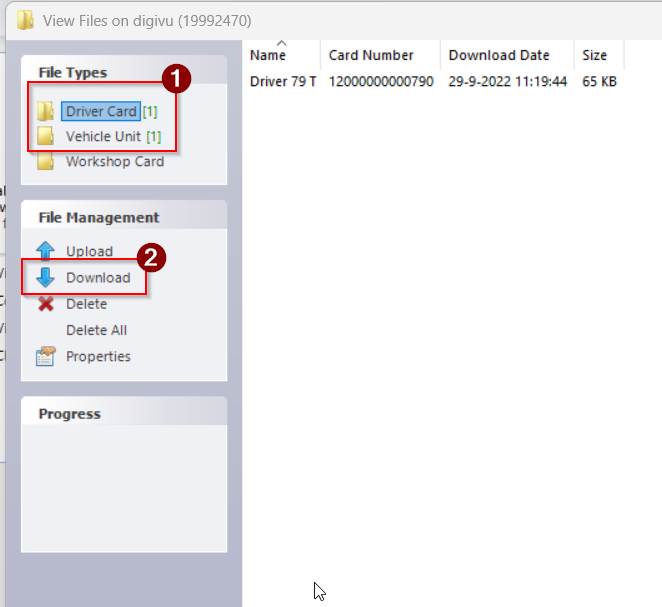

6. Click here and select the files of your USB device.

7. Files are uploaded and can be displayed in your Files overview.
