Vehicle download status

This page contains the download status of all your vehicles connected with a remote download device, on this page you can check if your downloads are still properly coming in and when the system recorded the last trip of the vehicle.

Where can you find it

Select: Tachograph → Remote download → Vehicle download status

What does it mean/do

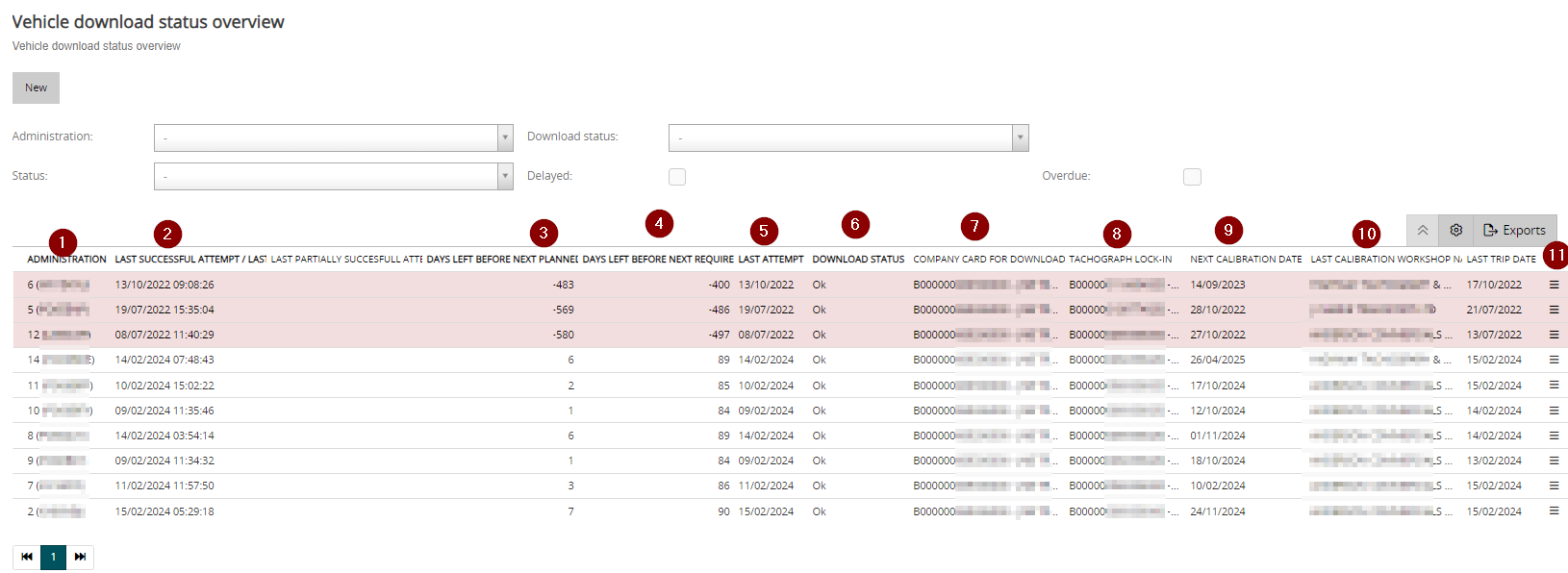

Below we added a screenshot of this page and the meaning of the columns will be explained

1. This is where you can find the licence plate of the administration.

2. Here you can find out the most recent successful download for that vehicle.

3. Shows the amount of days left before the system attempts another download. If this is a negative number, and it is still making active trips, action is needed.

4. Indicates the number of days until the next legally required download. If this number goes negative and you still have the vehicle in use, action is required.

5. Displays the date of the last attempted download.

6. Shows the status of the last download attempt.

7. The company used for the downloads

8. Shows the card the vehicle is locked to (if any), this needs to be in the same series (the same except the last three numbers) as the one under number 7.

9. Indicates when the vehicle/tachograph has to go for the next calibration.

10. The name of the workshop that performed the last calibration.

11. The last trip recorded by our device.

You can check if a download status is active or inactive by selecting the Status and change it, as shown below:

Activating inactive download status

When there is a vehicle with an inactive download status, you can click on the 'hamburger menu' and activate it again by clicking on Activate, as shown in below example:

Colour status

White: Downloads are within the scheduled interval.

Yellow: Downloads are out of the scheduled interval but within the legally required download time.

Red: Downloads are out of both the scheduled interval and legally required download time.
